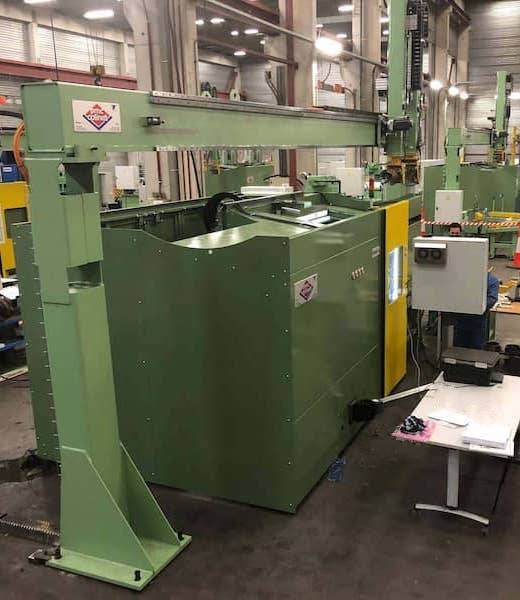

Rotating Product Coupling (RPC) Threading Machines

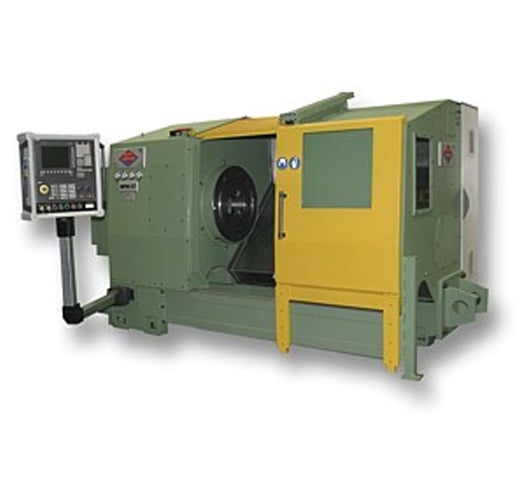

RPC07-2 Coupling Threading Machine
The RPC07-2 coupling threading machine is designed for precision threading of pipes ranging from 2 3/8" to 7" in diameter. Ideal for API, classical premium, and complex premium connections, it features an advanced hydraulic roll-over chuck system with a maximum clamping force of 120 kN for stable and accurate threading. The machine offers side A/B threading through a roll-over chuck, enabling efficient alternating machining. Powered by a 65 kW motor with spindle speeds up to 1,100 RPM, the RPC07-2 is customizable with fully automatic or semi-automatic handling options, providing a versatile solution for high-precision coupling threading.
Technical Data

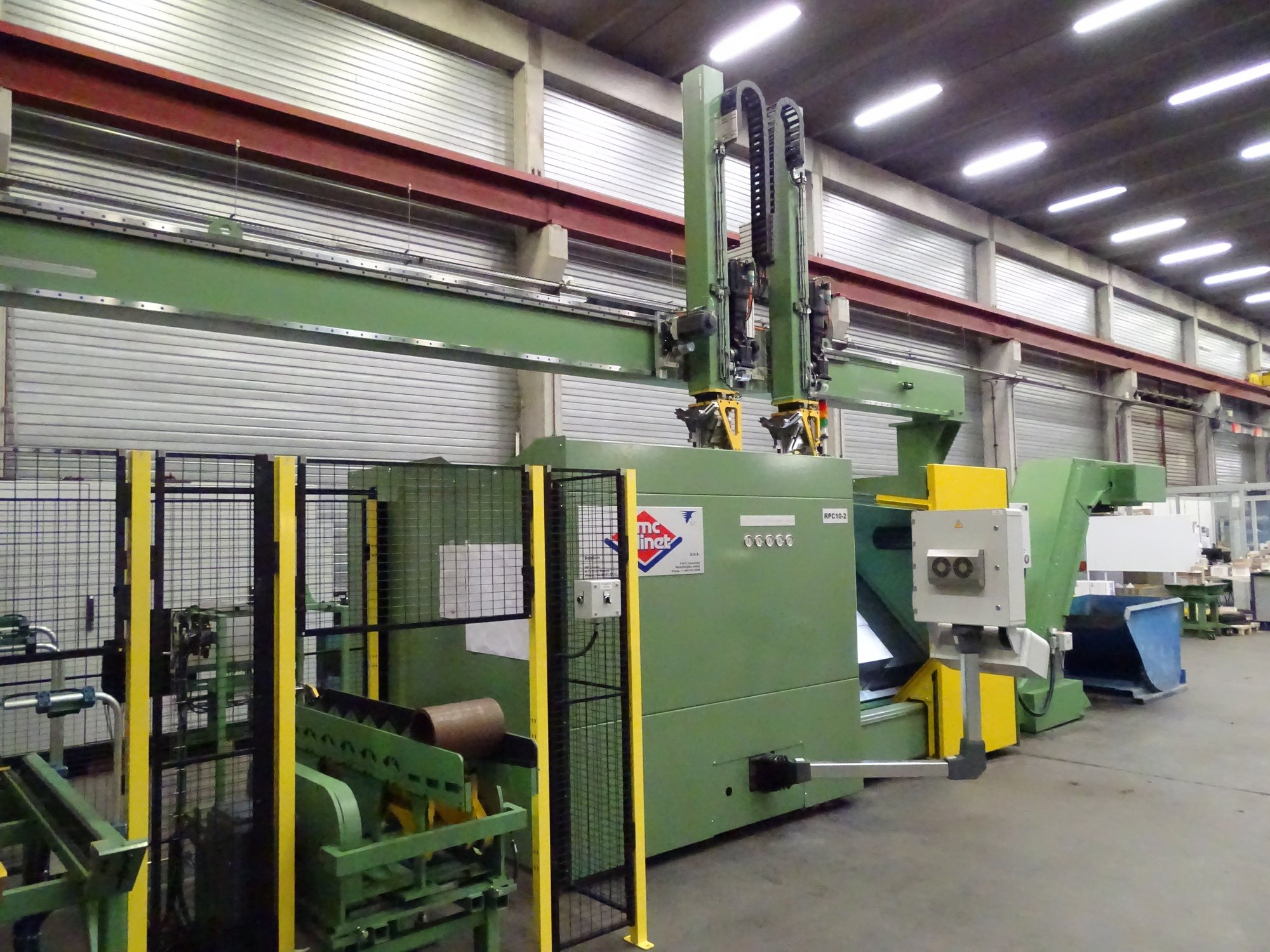

RPC10-2 Coupling Threading Machine
The RPC10-2 coupling threading machine is engineered for threading pipes with diameters ranging from 2 7/8" to 9 5/8". Designed for API, classical premium, and complex premium connections, it features a robust hydraulic roll-over chuck system with a clamping force of 170 kN for precise, secure operations. With side A/B threading using the chuck roll-over, this machine enhances efficiency while maintaining accuracy. Powered by an 81 kW motor and spindle speeds of up to 950 RPM, the RPC10-2 offers fully customizable handling solutions, including a fully automatic gantry loader and semi-automatic loader, ensuring flexibility and high productivity.
Technical Data
.png?width=1546&height=833&name=RPC13-2%20(1).png)

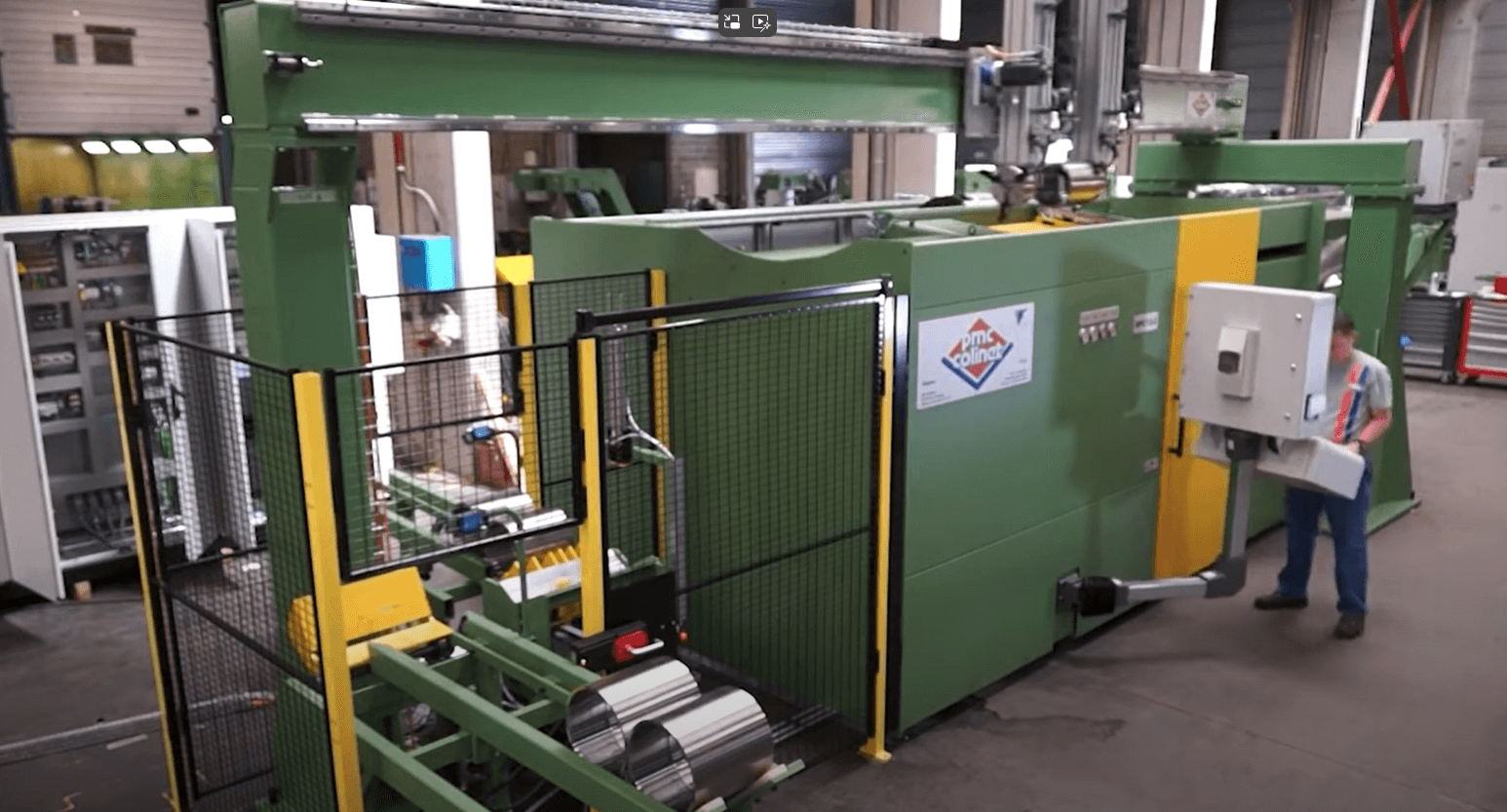

RPC13-2 Coupling Threading Machine
The RPC13-2 coupling threading machine is built to handle couplings with diameters from 4 1/2" to 13 3/8", making it ideal for API, classical premium, and complex premium connections. Featuring a hydraulic roll-over chuck with a clamping force of 170 kN, this machine provides precise and stable threading operations. The side A/B machining process, enabled by the chuck roll-over, ensures efficient, alternating threading for enhanced productivity. Powered by a 100 kW motor with spindle speeds up to 700 RPM, the RPC13-2 offers flexible automation options with fully automatic gantry loader and semi-automatic handling solutions, making it a powerful and versatile solution for large-scale coupling threading.
Technical Data
.png?width=1463&height=821&name=RPC16-2%20(1).png)

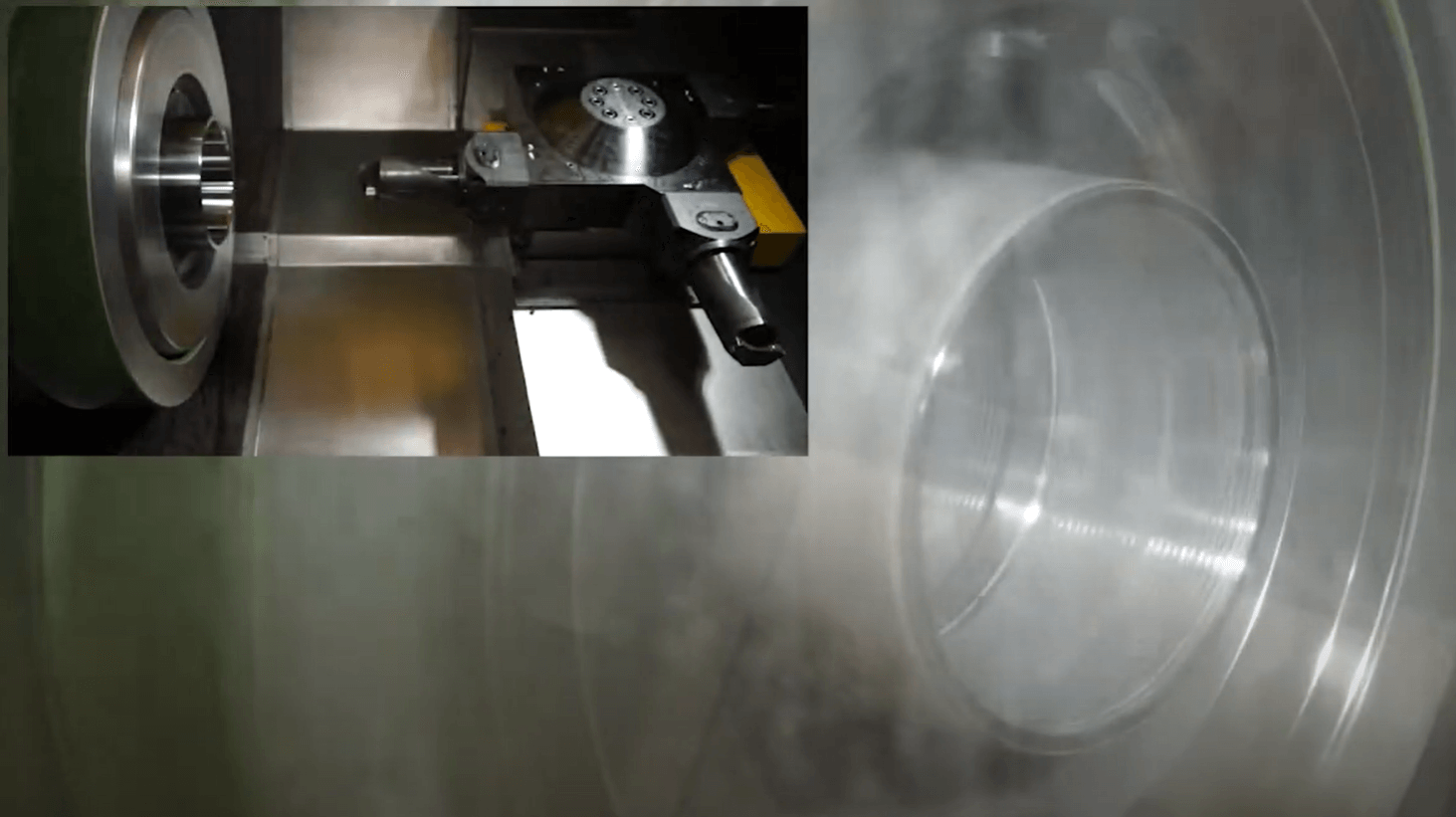

RPC16-2 Coupling Threading Machine
The RPC16-2 coupling threading machine is designed to accommodate couplings diameters from 4 1/2" to 16 3/4", supporting API, classical premium, and complex premium connections. Equipped with a stationary hydraulic chuck that offers a clamping force of 170 kN, the RPC16-2 provides stability and precision in threading operations. Its side A/B machining process allows for efficient threading from one side, ensuring streamlined production for larger couplings. Powered by a 100 kW motor and reaching spindle speeds up to 700 RPM, the RPC16-2 offers both fully automatic gantry loader and semi-automatic loader options for flexible and high-volume production environments.
Technical Data
RPC16-4 Coupling Threading Machine
The RPC16-4 coupling threading machine is designed for couplings with diameters from 4 1/2" to 16 3/4", making it perfect for API, classical premium, and complex premium connections. Unlike the RPC16-2, which threads from one side, the RPC16-4 features a central drive chuck that allows simultaneous threading from both sides of the coupling, significantly increasing efficiency and reducing cycle times. With a clamping force of 170 kN and 4-axis control, this machine delivers exceptional precision and stability. Powered by a 180 kW motor and reaching spindle speeds of up to 700 RPM, the RPC16-4 is ideal for high-volume production with both fully automatic gantry loaders.
Technical Data

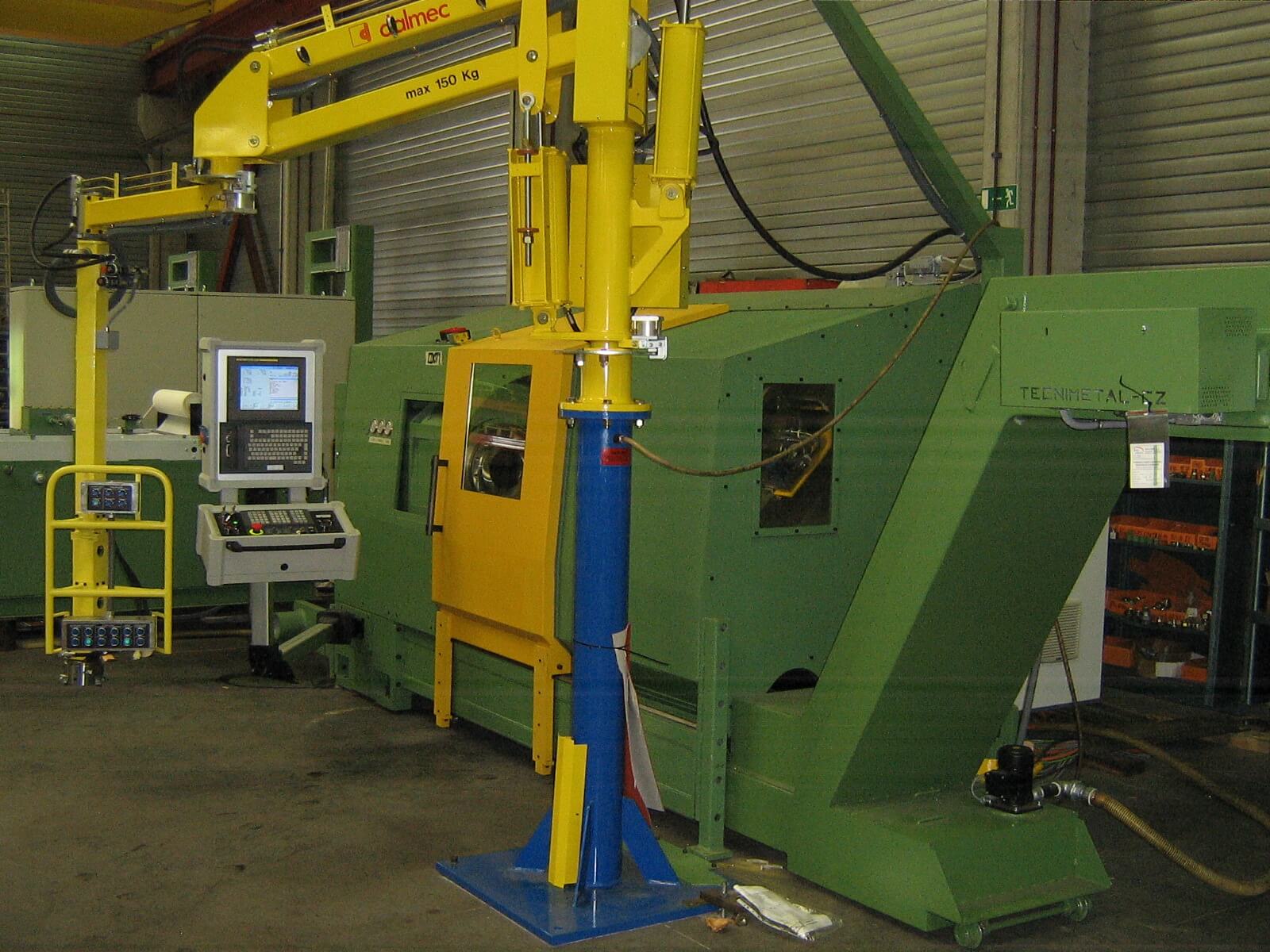

RPC20-2 Coupling Threading Machine
The RPC20-2 coupling threading machine is designed to handle large pipe diameters ranging from 7" to 20", supporting API, classical premium, and complex premium connections. Featuring a stationary hydraulic chuck with 3 concentric and 6 floating jaws, it provides a robust clamping force of 250 kN for secure and precise operations. The machine performs alternating side A/B threading from one side of the coupling, ensuring efficient production. Powered by a 100 kW motor and spindle speeds up to 400 RPM, the RPC20-2 is ideal for high-volume operations with flexible handling solutions, including fully automatic gantry loader and semi-automatic loader.
Technical Data
.jpg?width=1500&height=2000&name=RPC24-2%20(1).jpg)

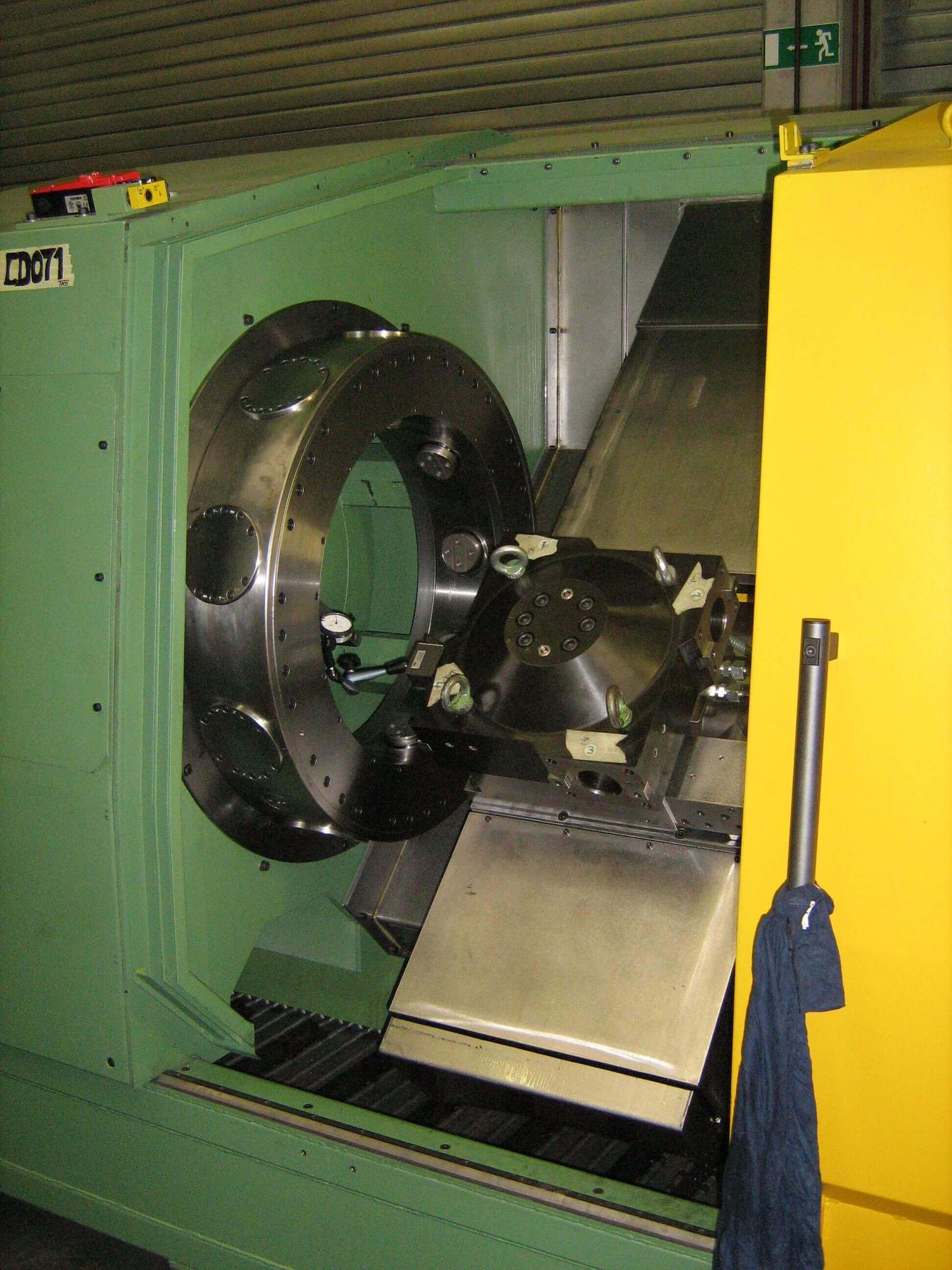

RPC24-2 Coupling Threading Machine
The RPC24-2 coupling threading machine is built for large-diameter couplings ranging from 9 5/8" to 24", making it ideal for API, classical premium, and complex premium connections. It features a stationary hydraulic chuck with 3 concentric and 6 floating jaws, delivering a clamping force of 250 kN for reliable and precise threading operations. The machine performs alternating side A/B threading from side A of the coupling, providing efficient and accurate results. Powered by a 100 kW motor and reaching spindle speeds up to 400 RPM, the RPC24-2 supports fully automatic gantry loader and semi-automatic handling solutions for high-volume production.
Technical Data
