Automated Solutions Built for Reliability

PMC-Colinet™, a Park Ohio company, offers protector applying machines, drifters and triangular stampers that are expertly crafted to optimize the pipe protector application process. These confirm that the pipe and its couplings are clear on the partial or full length and stamp the mandatory triangular for the BTC connection.

Fully automated and designed to eliminate manual handling, these machines ensure consistent and precise application at scale. By reducing workplace hazards — such as accidents associated with manual greasing — these machines provide a safer working environment for your team. Built to endure the most demanding environments, PMC-Colinet’s protector applying machines, drifter and triangular stamping units deliver long-lasting performance, lower operating costs, and seamless integration with your existing systems.
  • Fully automated, reducing the need for manual handling
  • Improves workplace safety by eliminating manual greasing
  • Customized to fit your unique operational needs
  • Ensures precise application at scale for consistent results
  • Integrates seamlessly with existing computer systems
  • Designed to last five to six times longer than competing solutions

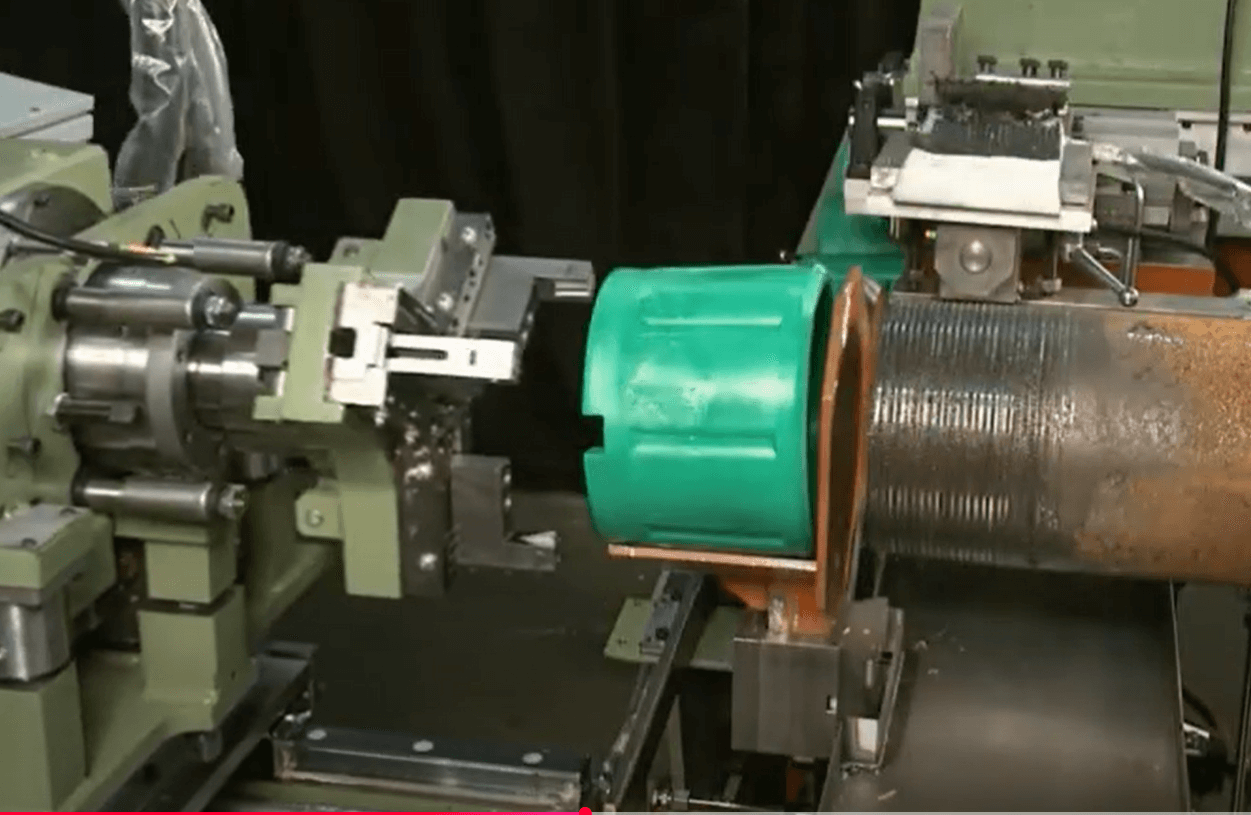

PAP05 PAB05 Protector Applier

PAP05/PAB05 Protector Applying Machine

The PAP05/PAB05 is designed to ensure precision and efficient application of protectors onto threaded pipes with nominal OD ranging from 1.9" to 5". Built to handle API and premium connections, it features a total floating gripping head, allowing for freedom of movement in all directions and eliminating start mismatches during protector application. Engineered for reliability and accuracy, the PAP05/PAB05 delivers consistent results for small to medium pipe applications.

Request a Quote
Technical Data
arrow

  • Nominal Pipe OD Range

    • 1.9" to 5"

    • 48.3 mm to 127 mm

  • Product: API and Premium Connections

  • Gripping Head: Total Floating Head — freedom of movement in all directions, avoiding start mismatches

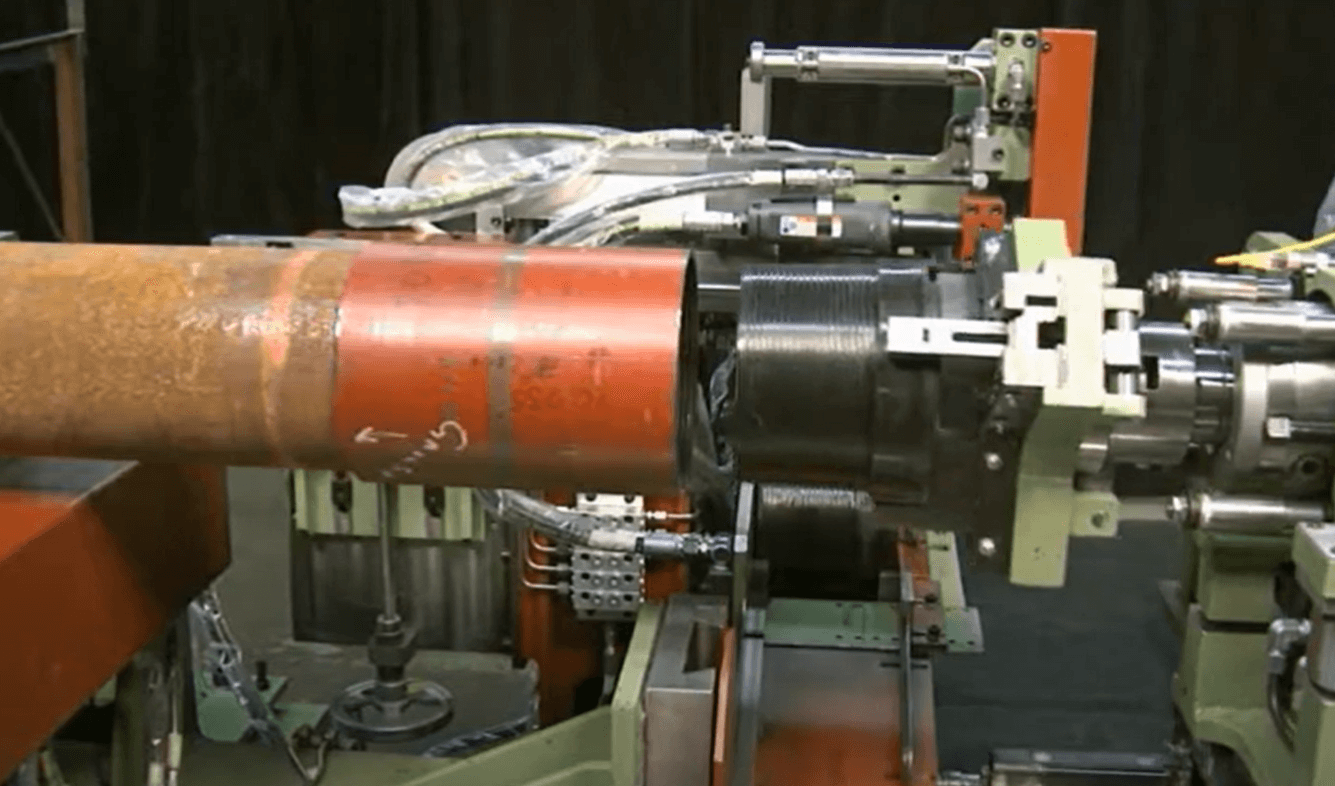

PAP07 PAB07 Protector Applier

PAP07/PAB07 Protector Applying Machine

The PAP07/PAB07 is designed to ensure precision and efficient application of protectors onto threaded pipes with nominal OD ranging from 2 3/8" to 7". Perfect for API and premium connections, its total floating gripping head prevents start mismatches while ensuring smooth and accurate protector application. With a maximum applying torque of 740 lbf-ft (1,000 Nm), the PAP07/PAB07 provides the precision and durability required for operations.

Request a Quote
Technical Data
arrow

  • Nominal Pipe OD Range

    • 2 ⅜" to 7"

    • 60.3 mm to 177.8 mm

  • Product: API and Premium Connections

  • Gripping Head: Total Floating Head — freedom of movement in all directions, avoiding start mismatches

  • Max Applying Torque

    • 740 lbf-ft

    • 1,000 Nm

PAP10/PAB10 Protector Applying Machine

PAP10/PAB10 Protector Applying Machine

The PAP10/PAB10 is designed to ensure precision and efficient application of protectors onto threaded pipes with nominal OD ranging from 2 7/8" to 9 5/8". Designed for API and premium connections, it features a total floating gripping head that prevents start mismatches and guarantees precise protector application. With a maximum applying torque of 740 lbf-ft (1,000 Nm), the PAP10/PAB10 ensures reliable performance for large-scale pipe applications.

Request a Quote
Technical Data
arrow

  • Nominal Pipe OD Range

    • 2 ⅞" to 9 ⅝"

    • 73 mm to 244.5 mm

  • Product: API and Premium Connections

  • Gripping Head: Total Floating Head — freedom of movement in all directions, avoiding start mismatches

  • Max Applying Torque

    • 740 lbf-ft

    • 1,000 Nm

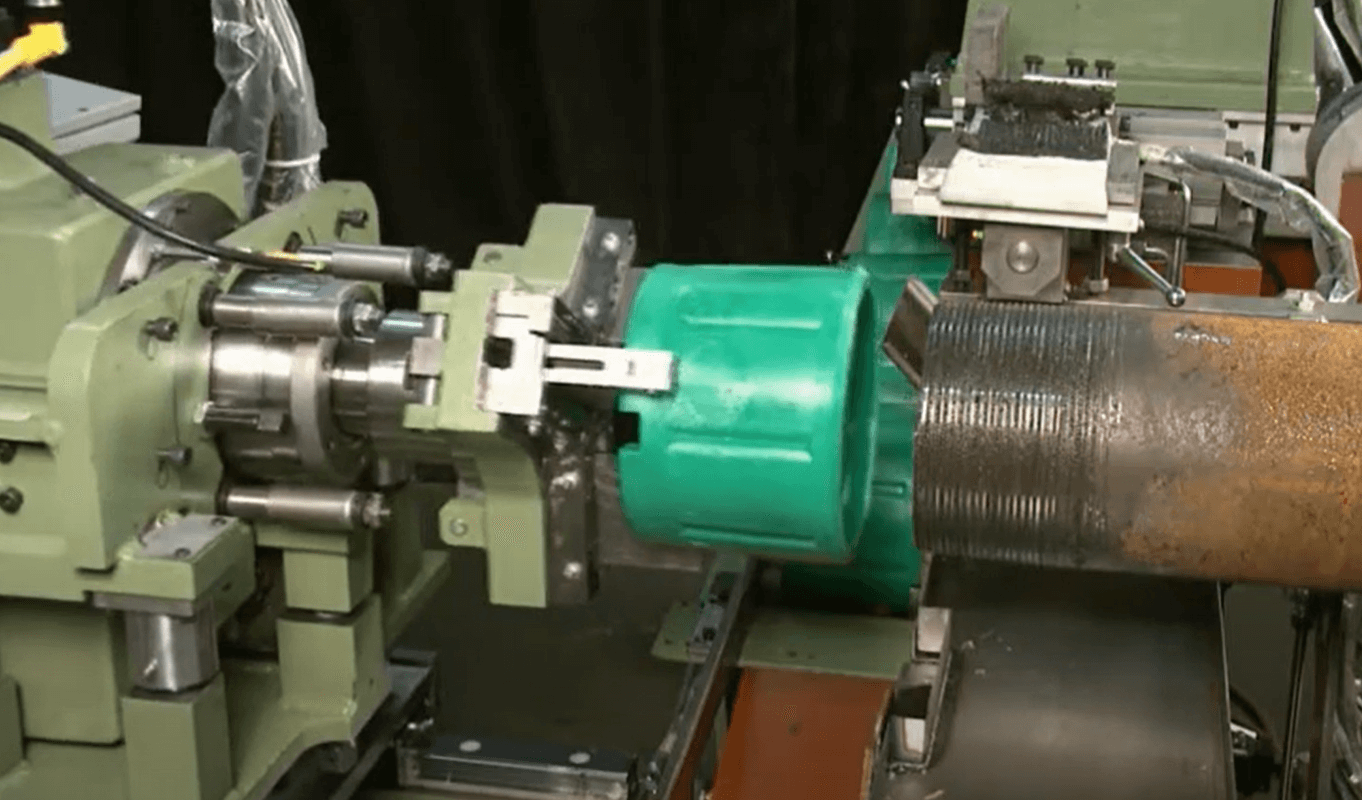

PAP13 PAB13 Protector Applier

PAP13/PAB13 Protector Applying Machine

The PAP13/PAB13 is designed to ensure precision and efficient application of protectors onto threaded pipes with nominal OD ranging from 4 1/2" to 13 3/8". Designed to accommodate API and premium connections, it features a total floating gripping head that eliminates start mismatches and ensures consistent protector application. With a maximum applying torque of 740 lbf-ft (1,000 Nm), the PAP13/PAB13 delivers reliable performance for demanding operations.

Request a Quote
Technical Data
arrow

  • Nominal Pipe OD Range

    • 4 ½" to 13 ⅜"

    • 114.3 mm to 339.7 mm

  • Product: API and Premium Connections

  • Gripping Head: Total Floating Head — freedom of movement in all directions, avoiding start mismatches

  • Max Applying Torque

    • 740 lbf-ft

    • 1,000 Nm

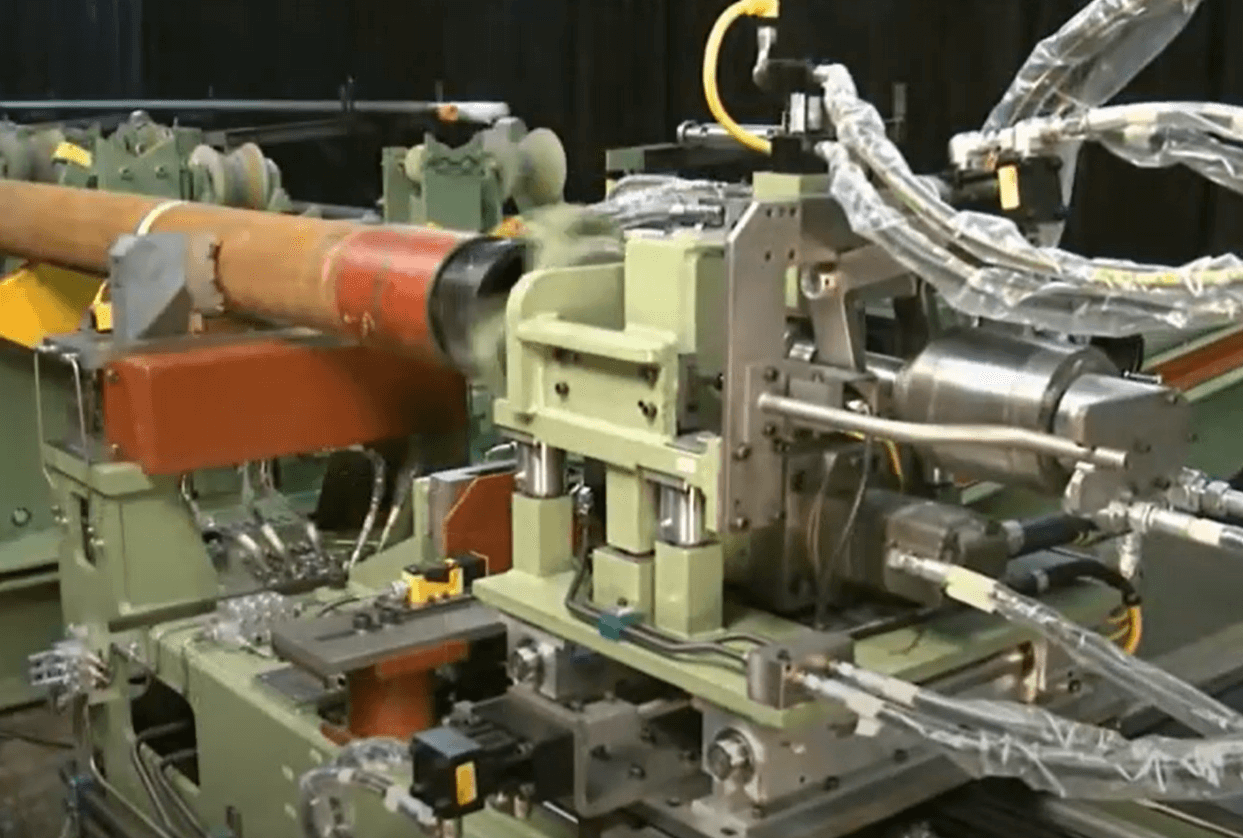

PAP16 PAB16 Protector Applier

PAP16/PAB16 Protector Applying Machine

The PAP16/PAB16 is designed to ensure precision and efficient application of protectors onto threaded pipes with nominal OD ranging from 5 1/2" to 16 3/4". Ideal for API and premium connections, it includes a total floating gripping head to prevent start mismatches, guaranteeing accurate and efficient protector application. With a maximum applying torque of 740 lbf-ft (1,000 Nm), the PAP16/PAB16 is built for high-performance, heavy-duty applications.

Request a Quote
Technical Data
arrow

  • Nominal Pipe OD Range

    • 5 ½" to 16 ¾"

    • 139.7 mm to 426 mm

  • Product: API and Premium Connections

  • Gripping Head: Total Floating Head — freedom of movement in all directions, avoiding start mismatches

  • Max Applying Torque

    • 740 lbf-ft

    • 1,000 Nm
